RHC PART · FITS R22 · R44 · AUTHORIZED ROBINSON HELICOPTER DEALER

10536-1 Gasket, Gascolator

Robinson part number 10536-1, gasket, gascolator, for the R22 and R44. Factory-new from APEX Helicopters, an authorized Robinson service center at Fort Lauderdale Executive (FXE). Send the RFQ and a service specialist confirms price, availability, lead time, and install hours.

PART NUMBER: 10536-1
DESCRIPTION: GASKET, GASCOLATOR
UNIT: EACH
FITS: R22 · R44
CONDITION: FACTORY NEW
2026 LIST PRICERHC price list, effective January 1, 2026: $18.75

List price shown for reference. Call (954) 914-0600 or send the RFQ: availability, lead time, and install hours quoted together, usually the same business day.

Where it is in the parts catalogNEW

Every catalog figure this part appears in, by model. Tap a row to see the drawing with the part circled, or open the same page in the Robinson Helicopter Illustrated Parts Catalog (IPC).

MODELCHAPTERFIGUREITEMQTYPAGE

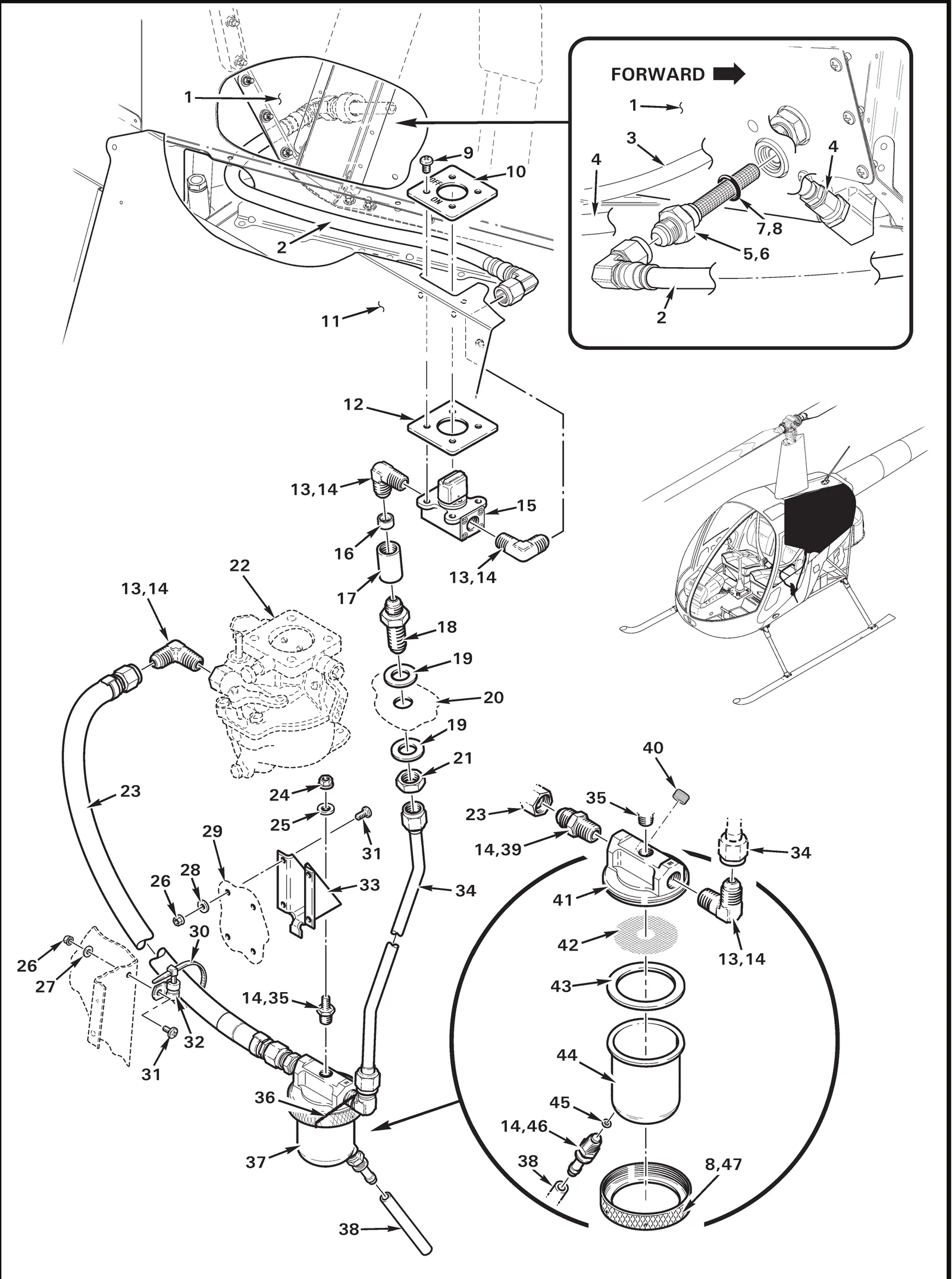

R22 · FIGURE 28-13 · FUEL SYSTEM COMPONENTS · CHAPTER 28 · PAGE 28.12 · MAY 2021ITEM 43 CIRCLED · QTY 1 · Open in the official R22 IPC ↗

R22 parts catalog figure 28-13, fuel system components, with item 43 (10536-1 gasket - gascolator (viton, replaces 10536)) circled — R22 · Figure 28-13 · Fuel system components · Chapter 28, Fuel System · Page 28.12 · Revised MAY 2021Illustration © Robinson Helicopter Company · R22 Illustrated Parts Catalog, September 2026 edition · Figure 28-13

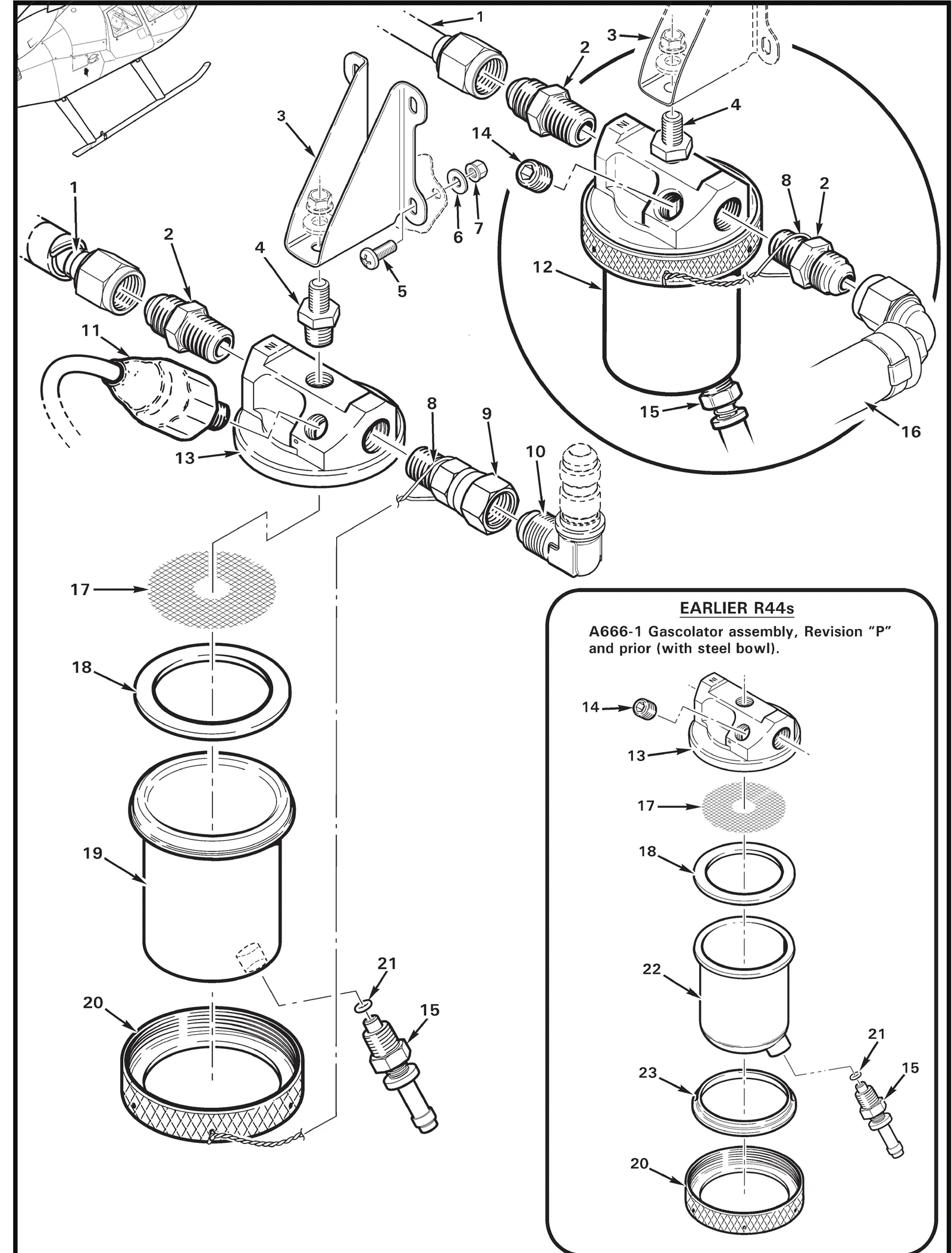

CATALOG EDITIONS: R22 SEP 2026 · R44 JUN 2026 · PARTS LIST PAGE 28.14 ↗

How ordering works

Send the RFQ with quantity + aircraft serial
We quote price, availability + install hours
Approve and schedule

Aircraft on ground? AOG requests jump the line. Serial effectivity and applicable service bulletins are checked on every quote, by a person.

Related parts

103SR13A-3

Position Sender

FITS R22 · R44 · R66

10543-2

Screen

FITS R22 · R44

10282

Filter

FITS R66

Not the part you need? Send any Robinson part number, the RFQ takes whole lists.
